13 天自制简易数据库
用 C 语言从零实现一个 sqlite
第五部分 - 持久化到磁盘
Part 6 - The Cursor Abstraction
“Nothing in the world can take the place of persistence.” – Calvin Coolidge
我们的数据库已经可以插入数据和查询数据了，但仅限于程序一直在运行，如果你退出程序再重新启动它，你会发现之前的数据全部都丢了。而我们期望的效果应该是满足下面这个测试用例的：
it 'keeps data after closing connection' do
result1 = run_script([
"insert 1 user1 person1@example.com",
".exit",
])
expect(result1).to match_array([
"db > Executed.",
"db > ",
])
result2 = run_script([
"select",
".exit",
])
expect(result2).to match_array([
"db > (1, user1, person1@example.com)",
"Executed.",
"db > ",
])
end
像 SQLite 一样，我们也会把整个数据库的记录保存到文件中。
在此前的工作中，我们已经能够把一行行数据序列化成页大小的内存块。而增加持久化功能，我们只需要把这些内存块写入到文件中即可，下次程序启动的时候再从文件中把数据读回到内存。

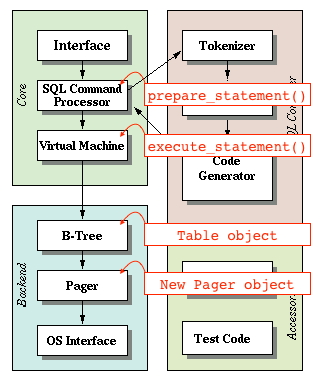

为了使代码更清晰，我们将创建一个叫做 pager 的抽象层。当我们需要取得页号为 x 的页时，pager 将会返回一整块内存。pager 首先会查询缓存，如果缓存中没有，它就会读取数据库文件，将数据从磁盘拷贝到内存中。
 |
Pager 直接访问页缓存和文件，而数据表对象则是通过 pager 来请求页：
+typedef struct {
+ int file_descriptor;
+ uint32_t file_length;
+ void* pages[TABLE_MAX_PAGES];
+} Pager;
+
typedef struct {
- void* pages[TABLE_MAX_PAGES];
+ Pager* pager;
uint32_t num_rows;
} Table;
我把 new_table() 重命名为 db_open() 了，因为它现在有打开数据库连接的功能。“打开连接”指的是：
- 打开数据库文件
- 初始化 pager 结构体
- 初始化表结构体
-Table* new_table() {
+Table* db_open(const char* filename) {
+ Pager* pager = pager_open(filename);
+ uint32_t num_rows = pager->file_length / ROW_SIZE;
+
Table* table = malloc(sizeof(Table));
- table->num_rows = 0;
+ table->pager = pager;
+ table->num_rows = num_rows;
return table;
}
db_open() 将会调用 pager_open()，这个函数内部会打开数据库文件，并且保持对数据库文件大小的追踪。同时它也会初始化页缓存为 NULL。
+Pager* pager_open(const char* filename) {
+ int fd = open(filename,
+ O_RDWR | // Read/Write mode
+ O_CREAT, // Create file if it does not exist
+ S_IWUSR | // User write permission
+ S_IRUSR // User read permission
+ );
+
+ if (fd == -1) {
+ printf("Unable to open file\n");
+ exit(EXIT_FAILURE);
+ }
+
+ off_t file_length = lseek(fd, 0, SEEK_END);
+
+ Pager* pager = malloc(sizeof(Pager));
+ pager->file_descriptor = fd;
+ pager->file_length = file_length;
+
+ for (uint32_t i = 0; i < TABLE_MAX_PAGES; i++) {
+ pager->pages[i] = NULL;
+ }
+
+ return pager;
+}
为了遵循对页的新的抽象概念，我们需要将获取一页的逻辑移到 pager 自己的方法中：
void* row_slot(Table* table, uint32_t row_num) {
uint32_t page_num = row_num / ROWS_PER_PAGE;
- void* page = table->pages[page_num];
- if (page == NULL) {
- // Allocate memory only when we try to access page
- page = table->pages[page_num] = malloc(PAGE_SIZE);
- }
+ void* page = get_page(table->pager, page_num);
uint32_t row_offset = row_num % ROWS_PER_PAGE;
uint32_t byte_offset = row_offset * ROW_SIZE;
return page + byte_offset;
}
get_page() 方法需要有处理未命中缓存的逻辑。我们假设所有的页是一个接一个保存在文件中的：第 0 页偏移量为 0，第 1 页偏移量为 4096，第 2 页偏移量为 8192，以此类推。如果请求的页超出了文件边界，那我们可以认为该页应该为空白页，只需要申请一段内存并返回即可。这一页在稍后刷缓存的时候会被追加到文件后面。
+void* get_page(Pager* pager, uint32_t page_num) {
+ if (page_num > TABLE_MAX_PAGES) {
+ printf("Tried to fetch page number out of bounds. %d > %d\n", page_num,
+ TABLE_MAX_PAGES);
+ exit(EXIT_FAILURE);
+ }
+
+ if (pager->pages[page_num] == NULL) {
+ // Cache miss. Allocate memory and load from file.
+ void* page = malloc(PAGE_SIZE);
+ uint32_t num_pages = pager->file_length / PAGE_SIZE;
+
+ // We might save a partial page at the end of the file
+ if (pager->file_length % PAGE_SIZE) {
+ num_pages += 1;
+ }
+
+ if (page_num <= num_pages) {
+ lseek(pager->file_descriptor, page_num * PAGE_SIZE, SEEK_SET);
+ ssize_t bytes_read = read(pager->file_descriptor, page, PAGE_SIZE);
+ if (bytes_read == -1) {
+ printf("Error reading file: %d\n", errno);
+ exit(EXIT_FAILURE);
+ }
+ }
+
+ pager->pages[page_num] = page;
+ }
+
+ return pager->pages[page_num];
+}
现在，我们将会一直等到用户关闭数据库连接，才将缓存刷写到磁盘。当用户退出时，我们会调用一个叫做 db_close() 的新方法，它将：
- 刷写页缓存到磁盘
- 关闭数据库文件
- 释放 Pager 和数据表所申请的内存
+void db_close(Table* table) {
+ Pager* pager = table->pager;
+ uint32_t num_full_pages = table->num_rows / ROWS_PER_PAGE;
+
+ for (uint32_t i = 0; i < num_full_pages; i++) {
+ if (pager->pages[i] == NULL) {
+ continue;
+ }
+ pager_flush(pager, i, PAGE_SIZE);
+ free(pager->pages[i]);
+ pager->pages[i] = NULL;
+ }
+
+ // There may be a partial page to write to the end of the file
+ // This should not be needed after we switch to a B-tree
+ uint32_t num_additional_rows = table->num_rows % ROWS_PER_PAGE;
+ if (num_additional_rows > 0) {
+ uint32_t page_num = num_full_pages;
+ if (pager->pages[page_num] != NULL) {
+ pager_flush(pager, page_num, num_additional_rows * ROW_SIZE);
+ free(pager->pages[page_num]);
+ pager->pages[page_num] = NULL;
+ }
+ }
+
+ int result = close(pager->file_descriptor);
+ if (result == -1) {
+ printf("Error closing db file.\n");
+ exit(EXIT_FAILURE);
+ }
+ for (uint32_t i = 0; i < TABLE_MAX_PAGES; i++) {
+ void* page = pager->pages[i];
+ if (page) {
+ free(page);
+ pager->pages[i] = NULL;
+ }
+ }
+ free(pager);
+ free(table);
+}
+
-MetaCommandResult do_meta_command(InputBuffer* input_buffer) {
+MetaCommandResult do_meta_command(InputBuffer* input_buffer, Table* table) {
if (strcmp(input_buffer->buffer, ".exit") == 0) {
+ db_close(table);
exit(EXIT_SUCCESS);
} else {
return META_COMMAND_UNRECOGNIZED_COMMAND;
在当前的设计中，文件长度信息包含了数据库有多少行，所以在文件末尾我们写入的可能不是完整的页。这也是为什么 pager_flush() 会同时需要页号和大小。这不是一个最佳设计，不过在后面我们用上 B 树之后就不会有这种情况了。
+void pager_flush(Pager* pager, uint32_t page_num, uint32_t size) {
+ if (pager->pages[page_num] == NULL) {
+ printf("Tried to flush null page\n");
+ exit(EXIT_FAILURE);
+ }
+
+ off_t offset = lseek(pager->file_descriptor, page_num * PAGE_SIZE, SEEK_SET);
+
+ if (offset == -1) {
+ printf("Error seeking: %d\n", errno);
+ exit(EXIT_FAILURE);
+ }
+
+ ssize_t bytes_written =
+ write(pager->file_descriptor, pager->pages[page_num], size);
+
+ if (bytes_written == -1) {
+ printf("Error writing: %d\n", errno);
+ exit(EXIT_FAILURE);
+ }
+}
最后，我们需要从命令行参数中接收数据库文件名。别忘了添加一个参数到 do_meta_command：
int main(int argc, char* argv[]) {
- Table* table = new_table();
+ if (argc < 2) {
+ printf("Must supply a database filename.\n");
+ exit(EXIT_FAILURE);
+ }
+
+ char* filename = argv[1];
+ Table* table = db_open(filename);
+
InputBuffer* input_buffer = new_input_buffer();
while (true) {
print_prompt();
read_input(input_buffer);
if (input_buffer->buffer[0] == '.') {
- switch (do_meta_command(input_buffer)) {
+ switch (do_meta_command(input_buffer, table)) {
有了这些修改，我们现在可以关闭然后重新打开数据库了，数据不会丢失！
~ ./db mydb.db
db > insert 1 cstack foo@bar.com
Executed.
db > insert 2 voltorb volty@example.com
Executed.
db > .exit
~
~ ./db mydb.db
db > select
(1, cstack, foo@bar.com)
(2, voltorb, volty@example.com)
Executed.
db > .exit
~

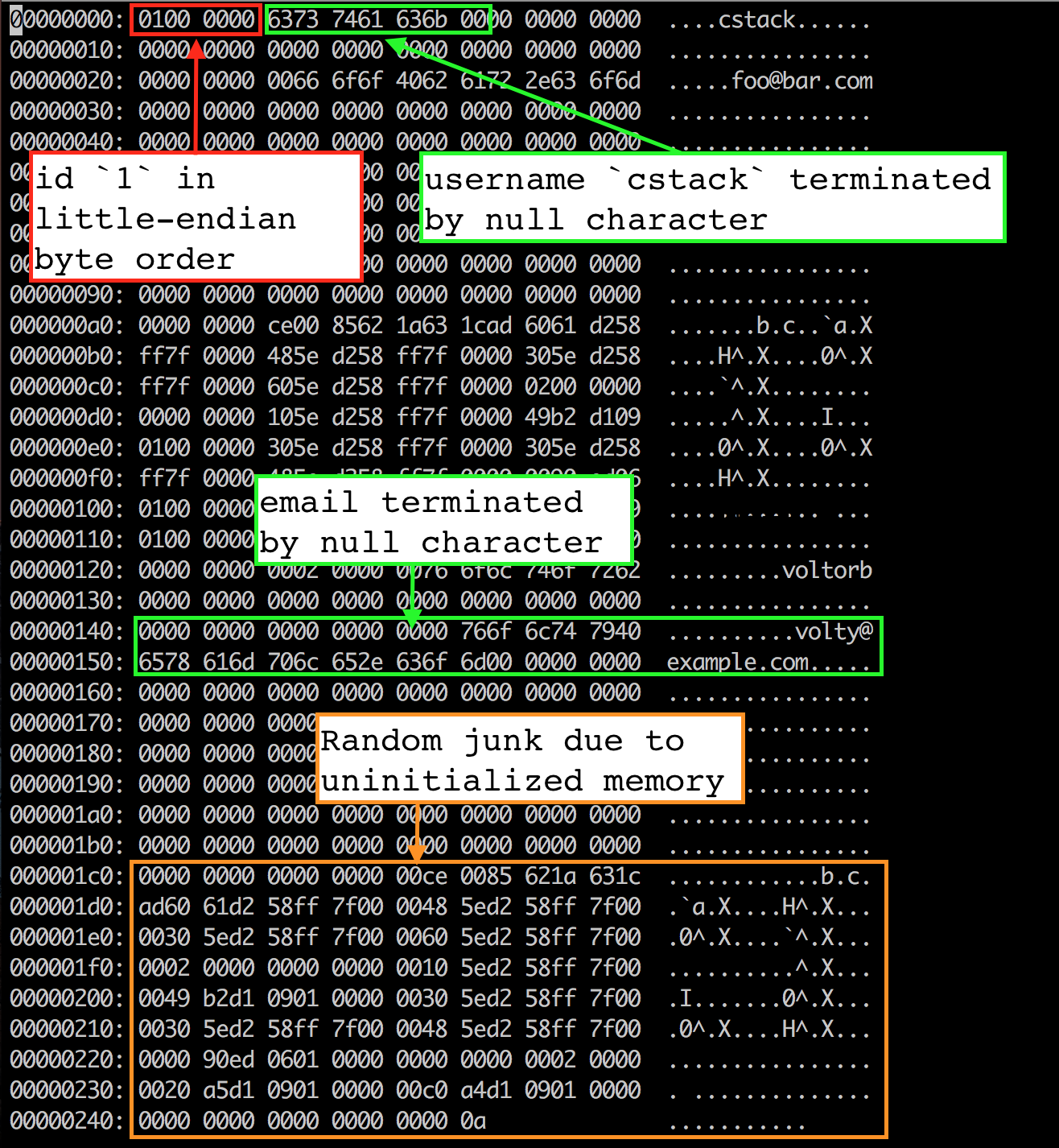

如果你感兴趣的话，可以看看 mydb.db 是怎么保存我们的数据的。我将会使用 vim 作为十六进制编辑器来看文件的内存布局：
vim mydb.db
:%!xxd
 |
首四字节（uint32_t 占用 4 字节空间）是第一行数据的 id。因为存储的时候是小端字节序，所以最小有效字节在前（01），后面跟着的是高位字节（00 00 00）。我们用了 memcpy() 来拷贝 Row 结构数据到页缓存中，也就意味着结构体在内存中排布是小端字节序。这是我编译这个程序使用的计算机决定的。如果我们要在我这台机器上写入数据库文件，然后再到另一台大端字节序的机器上读取数据，我们就必须修改 serialize_row() 和 deserialize_row() 方法来确保我们写入和读取的字节是相同的字节序。
紧接着的 33 个字节保存了以空字符作为结束的 username 字符串。很显然，63 73 74 61 63 6b 是 castack 的 ASCII 码的十六进制数，紧接着的是一个空字符（00）。剩下的 26 字节没有被使用。
接下来的 256 字节以相同的方式保存了 email。在这里我们可以看到在空结束符之后有一些随机的“垃圾”数据。这很有可能是因为我们没有初始化 Row 结构体，然后我们又完整地拷贝了这 256 字节的 email 数据到文件中，包括结束符后的那些字节。因为当我们为结构体分配内存空间之后，分配前内存中已有的内容也不会被清空。不过由于我们使用了空字符作为结束，所以行为上不会有影响。
注意：如果我们想要确保所有的字节都被初始化，那么我们在 serialize_row 中拷贝 username 和 email 字段时，使用 strncpy 来代替 memcpy，这样就足够了：
void serialize_row(Row* source, void* destination) {
memcpy(destination + ID_OFFSET, &(source->id), ID_SIZE);
- memcpy(destination + USERNAME_OFFSET, &(source->username), USERNAME_SIZE);
- memcpy(destination + EMAIL_OFFSET, &(source->email), EMAIL_SIZE);
+ strncpy(destination + USERNAME_OFFSET, source->username, USERNAME_SIZE);
+ strncpy(destination + EMAIL_OFFSET, source->email, EMAIL_SIZE);
}
结论
到此为止，我们已经实现了持久化！虽然不是最佳方案。例如，如果你不是用 .exit 而是直接杀死进程，你就会丢失所有数据改动。另外，即使页面没有改动，我们也会将所有页都写回磁盘。这些问题我们晚点解决。
下一章将介绍游标，一个可以让我们更容易实现 B 树的东西。
敬请期待！
完整的代码修改
+#include <errno.h>
+#include <fcntl.h>
#include <stdbool.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stdint.h>
+#include <unistd.h>
struct InputBuffer_t {
char* buffer;
@@ -62,9 +65,16 @@ const uint32_t PAGE_SIZE = 4096;
const uint32_t ROWS_PER_PAGE = PAGE_SIZE / ROW_SIZE;
const uint32_t TABLE_MAX_ROWS = ROWS_PER_PAGE * TABLE_MAX_PAGES;
+typedef struct {
+ int file_descriptor;
+ uint32_t file_length;
+ void* pages[TABLE_MAX_PAGES];
+} Pager;
+
typedef struct {
uint32_t num_rows;
- void* pages[TABLE_MAX_PAGES];
+ Pager* pager;
} Table;
@@ -84,32 +94,81 @@ void deserialize_row(void *source, Row* destination) {
memcpy(&(destination->email), source + EMAIL_OFFSET, EMAIL_SIZE);
}
+void* get_page(Pager* pager, uint32_t page_num) {
+ if (page_num > TABLE_MAX_PAGES) {
+ printf("Tried to fetch page number out of bounds. %d > %d\n", page_num,
+ TABLE_MAX_PAGES);
+ exit(EXIT_FAILURE);
+ }
+
+ if (pager->pages[page_num] == NULL) {
+ // Cache miss. Allocate memory and load from file.
+ void* page = malloc(PAGE_SIZE);
+ uint32_t num_pages = pager->file_length / PAGE_SIZE;
+
+ // We might save a partial page at the end of the file
+ if (pager->file_length % PAGE_SIZE) {
+ num_pages += 1;
+ }
+
+ if (page_num <= num_pages) {
+ lseek(pager->file_descriptor, page_num * PAGE_SIZE, SEEK_SET);
+ ssize_t bytes_read = read(pager->file_descriptor, page, PAGE_SIZE);
+ if (bytes_read == -1) {
+ printf("Error reading file: %d\n", errno);
+ exit(EXIT_FAILURE);
+ }
+ }
+
+ pager->pages[page_num] = page;
+ }
+
+ return pager->pages[page_num];
+}
+
void* row_slot(Table* table, uint32_t row_num) {
uint32_t page_num = row_num / ROWS_PER_PAGE;
- void *page = table->pages[page_num];
- if (page == NULL) {
- // Allocate memory only when we try to access page
- page = table->pages[page_num] = malloc(PAGE_SIZE);
- }
+ void *page = get_page(table->pager, page_num);
uint32_t row_offset = row_num % ROWS_PER_PAGE;
uint32_t byte_offset = row_offset * ROW_SIZE;
return page + byte_offset;
}
-Table* new_table() {
- Table* table = malloc(sizeof(Table));
- table->num_rows = 0;
+Pager* pager_open(const char* filename) {
+ int fd = open(filename,
+ O_RDWR | // Read/Write mode
+ O_CREAT, // Create file if it does not exist
+ S_IWUSR | // User write permission
+ S_IRUSR // User read permission
+ );
+
+ if (fd == -1) {
+ printf("Unable to open file\n");
+ exit(EXIT_FAILURE);
+ }
+
+ off_t file_length = lseek(fd, 0, SEEK_END);
+
+ Pager* pager = malloc(sizeof(Pager));
+ pager->file_descriptor = fd;
+ pager->file_length = file_length;
+
for (uint32_t i = 0; i < TABLE_MAX_PAGES; i++) {
- table->pages[i] = NULL;
+ pager->pages[i] = NULL;
}
- return table;
+
+ return pager;
}
-void free_table(Table* table) {
- for (int i = 0; table->pages[i]; i++) {
- free(table->pages[i]);
- }
- free(table);
+Table* db_open(const char* filename) {
+ Pager* pager = pager_open(filename);
+ uint32_t num_rows = pager->file_length / ROW_SIZE;
+
+ Table* table = malloc(sizeof(Table));
+ table->pager = pager;
+ table->num_rows = num_rows;
+
+ return table;
}
InputBuffer* new_input_buffer() {
@@ -142,10 +201,76 @@ void close_input_buffer(InputBuffer* input_buffer) {
free(input_buffer);
}
+void pager_flush(Pager* pager, uint32_t page_num, uint32_t size) {
+ if (pager->pages[page_num] == NULL) {
+ printf("Tried to flush null page\n");
+ exit(EXIT_FAILURE);
+ }
+
+ off_t offset = lseek(pager->file_descriptor, page_num * PAGE_SIZE,
+ SEEK_SET);
+
+ if (offset == -1) {
+ printf("Error seeking: %d\n", errno);
+ exit(EXIT_FAILURE);
+ }
+
+ ssize_t bytes_written = write(
+ pager->file_descriptor, pager->pages[page_num], size
+ );
+
+ if (bytes_written == -1) {
+ printf("Error writing: %d\n", errno);
+ exit(EXIT_FAILURE);
+ }
+}
+
+void db_close(Table* table) {
+ Pager* pager = table->pager;
+ uint32_t num_full_pages = table->num_rows / ROWS_PER_PAGE;
+
+ for (uint32_t i = 0; i < num_full_pages; i++) {
+ if (pager->pages[i] == NULL) {
+ continue;
+ }
+ pager_flush(pager, i, PAGE_SIZE);
+ free(pager->pages[i]);
+ pager->pages[i] = NULL;
+ }
+
+ // There may be a partial page to write to the end of the file
+ // This should not be needed after we switch to a B-tree
+ uint32_t num_additional_rows = table->num_rows % ROWS_PER_PAGE;
+ if (num_additional_rows > 0) {
+ uint32_t page_num = num_full_pages;
+ if (pager->pages[page_num] != NULL) {
+ pager_flush(pager, page_num, num_additional_rows * ROW_SIZE);
+ free(pager->pages[page_num]);
+ pager->pages[page_num] = NULL;
+ }
+ }
+
+ int result = close(pager->file_descriptor);
+ if (result == -1) {
+ printf("Error closing db file.\n");
+ exit(EXIT_FAILURE);
+ }
+ for (uint32_t i = 0; i < TABLE_MAX_PAGES; i++) {
+ void* page = pager->pages[i];
+ if (page) {
+ free(page);
+ pager->pages[i] = NULL;
+ }
+ }
+
+ free(pager);
+ free(table);
+}
+
MetaCommandResult do_meta_command(InputBuffer* input_buffer, Table *table) {
if (strcmp(input_buffer->buffer, ".exit") == 0) {
close_input_buffer(input_buffer);
- free_table(table);
+ db_close(table);
exit(EXIT_SUCCESS);
} else {
return META_COMMAND_UNRECOGNIZED_COMMAND;
@@ -182,6 +308,7 @@ PrepareResult prepare_insert(InputBuffer* input_buffer, Statement* statement) {
return PREPARE_SUCCESS;
}
+
PrepareResult prepare_statement(InputBuffer* input_buffer,
Statement* statement) {
if (strncmp(input_buffer->buffer, "insert", 6) == 0) {
@@ -227,7 +354,14 @@ ExecuteResult execute_statement(Statement* statement, Table *table) {
}
int main(int argc, char* argv[]) {
- Table* table = new_table();
+ if (argc < 2) {
+ printf("Must supply a database filename.\n");
+ exit(EXIT_FAILURE);
+ }
+
+ char* filename = argv[1];
+ Table* table = db_open(filename);
+
InputBuffer* input_buffer = new_input_buffer();
while (true) {
print_prompt();
测试用例的改动：
describe 'database' do
+ before do
+ `rm -rf test.db`
+ end
+
def run_script(commands)
raw_output = nil
- IO.popen("./db", "r+") do |pipe|
+ IO.popen("./db test.db", "r+") do |pipe|
commands.each do |command|
pipe.puts command
end
@@ -28,6 +32,27 @@ describe 'database' do
])
end
+ it 'keeps data after closing connection' do
+ result1 = run_script([
+ "insert 1 user1 person1@example.com",
+ ".exit",
+ ])
+ expect(result1).to match_array([
+ "db > Executed.",
+ "db > ",
+ ])
+
+ result2 = run_script([
+ "select",
+ ".exit",
+ ])
+ expect(result2).to match_array([
+ "db > (1, user1, person1@example.com)",
+ "Executed.",
+ "db > ",
+ ])
+ end
+
it 'prints error message when table is full' do
script = (1..1401).map do |i|
"insert #{i} user#{i} person#{i}@example.com"
